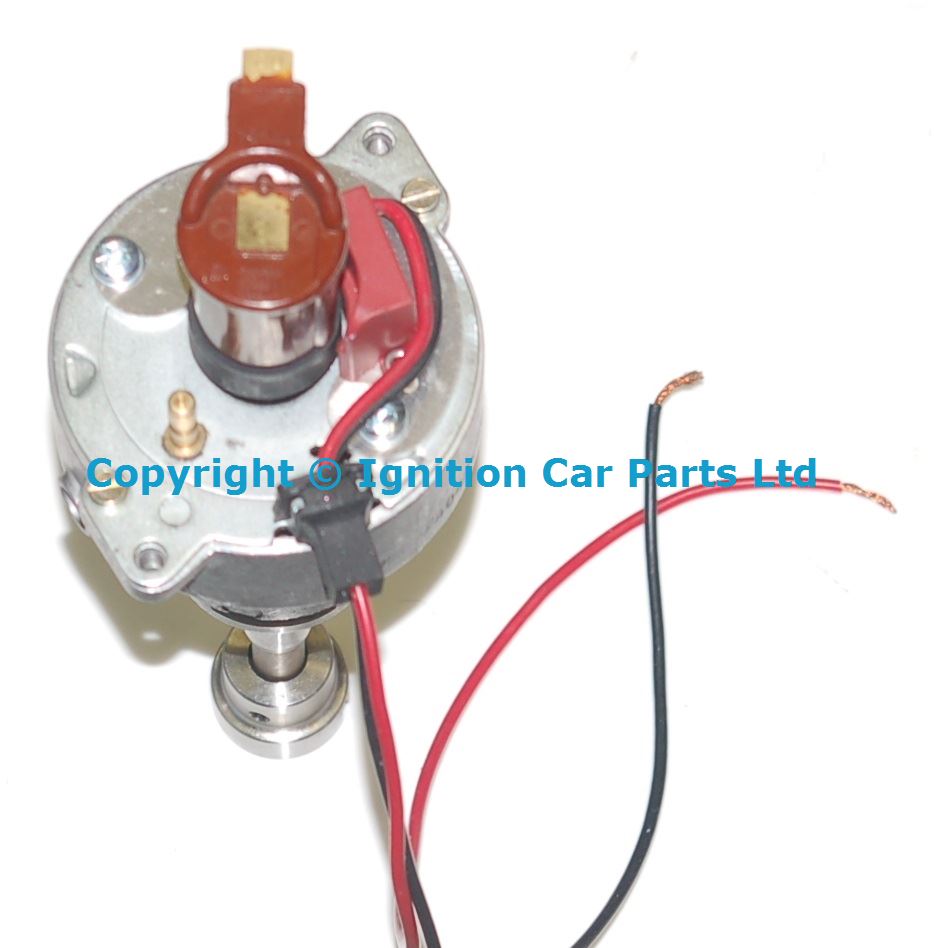

Fits inside Fiat distributor S155HX,S155CY & S156L to make electronic ignition, -. this easy to fit system can transform any classic into a reliable everyday mode of transport. Not affected by damp conditions, better fuel Economy, better starting. Easy to fit often only taking 5 minutes, no holes to drill, no complicated wiring, no need to get spark gap or dwell correct as this is automatic and best of all nothing bolted to the outside of the distributor. These smaller than a match box these units fit inside the distributor in the same place as the points, just 2 wires come out from the distributor to the ignition coil
See below for vehicle compatibility and original OE part numbers.
Click on the thumbnail image to enlarge |
|
|
|
|
Vehicle Compatibility
|
|
Vehicle |
Year |
CC |
Engine Code |
| FIAT - 131 1.3 Mirafiori | Oct 1974 to Dec 1982 | 1297 | |
| FIAT - 131 1.3 Super Mirafiori | Mar 1978 to Dec 1980 | 1297 | 131 B.000 |
| FIAT - 131 1.6 | Nov 1976 to Dec 1984 | 1585 | 131 C2.000 |
| FIAT - 132 1.6 | Jan 1976 to Dec 1982 | 1585 | 132 C.000 |
| FIAT - 132 1.6 | Mar 1977 to Dec 1981 | 1585 | 132 C6.000 |
| FIAT - 132 1.6 | May 1977 to Sep 1982 | 1585 | |
| FIAT - 131 1.6 (S) | Oct 1974 to Sep 1981 | 1585 | 131 A1.000 |
| FIAT - 131 1.6 Super | Mar 1978 to Jan 1984 | 1585 | 131 C3.000 |
| FIAT - PANDA 750 (141AA) | Jan 1986 to Jan 1995 | 770 | 156 A4.000 |
|
|
|
|
Original OE Part Numbers
|
- DELCO S155CY
- DELCO S155CY
- DELCO DRD6673
- MAGNETI MARELLI S156L
- MAGNETI MARELLI S156DXY
- MAGNETI MARELLI S156AX
- MAGNETI MARELLI S155HXY
- MAGNETI MARELLI S155HXK
- MAGNETI MARELLI S155HX
- MAGNETI MARELLI S155C
- MAGNETI MARELLI S155AX
- MAGNETI MARELLI S155A
- MAGNETI MARELLI S155
- MAGNETI MARELLI PDD6666
- Magnetti Marelli S155HXY
- Magnetti Marelli PDD6670
- Magnetti Marelli DRD6670
- Magnetti Marelli 417R2-417P2-6F
- Magnetti Marelli 417R2417P26F
- Magnetti Marelli 417R2
|
